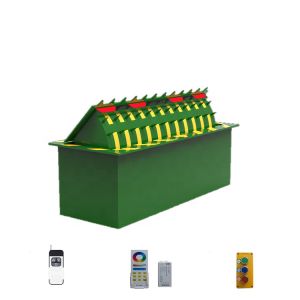

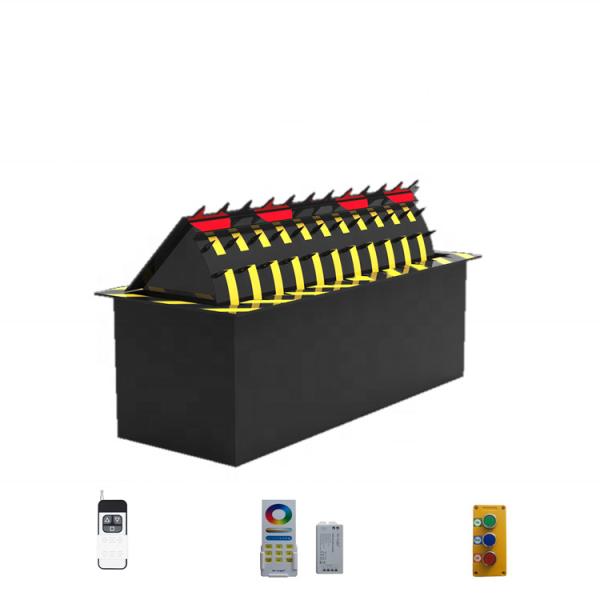

    Access Control Hydraulic Road Blocker Traffic Automatic Spike Systems Plate Barrier

    Ask Lasest Price
    Brand Name : AnKuai
    Supply Ability : 5000 Set/Sets per Month
    Price : Negotiable
    Model Number : AK-RB101
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-9 working days
    • Product Details
    • Company Profile

    Access Control Hydraulic Road Blocker Traffic Automatic Spike Systems Plate Barrier

    Automatic Access Control Hydraulic Spike Traffic Road Blocker Barrier Machine Security Product

    1. Foundation
    Trenching: Length: (length of Road blocker + 0.4) m,
    Width: 1.4 m
    Depth:(0.76 + panel thickness + 0.2) m
    Reservoir tank based on local situation (or connected with city drainage pipe)
    Use C30+ leve/ concrete to make a 200 mm cushion and bury PVC drain pipe in it.


    2. Installation
    ·Extended wire and Tube:
    0.3 m^2 four-core cable line (for LED light).
    Hydraulic tube (Length is based on the PVC tube and should be long enoughto connect the hydraulic station).
    Electromagnetic valve wire setup (Lifting 1&2 input, Falling 1&2 input).
    Get the main body into the pit.
    Cable wire and hydraulic tube are connected to ground through the PVC pipe.
    Use PVC pipe to connect the drainage pipe to guide the drainage process.


    3. Power Test, make sure the motor run in clockwise direction(if otherwise, stop immediately and switch any two live wiresof motor until it runs in clockwise direction).
    Test“ON”“OFF”“STOP”and other functions.
    Test foot pedal lifting function, and pressure relief valve dropping function.


    4. Fill in sand and stone into the pit to fix and make it stable and pour liquid concrete.


    5. Once the concrete is hardened, installation is finished and the device shall be regular use state.

    Control System
    Electro- Hydraulic
    Passing pressure:
    ≤120 tons container trucks
    System Dynamic power
    3.75KW
    Rise time :
    ≤1-3S(adjustable)
    fall time :
    ≤1-3S (adjustable)
    Buffer function
    buffer time :0.2s-0.5s
    Running noise
    ≤60 db
    Voltage:
    Three-phases 380V,(control voltage 24V)
    Oil container:
    60liter
    Control solenoid valve
    24V
    Lifting solenoid valve
    24V
    Remote control distance
    Approx .50-100m
    Working Temperature :
    -35ºC~75ºC(suitable)
    Material:
    304 stainless steel ,Spray anti-rust paint
    Material thickness
    16mm,20 mm,25 mm (Optional)
    Waterproof:
    IP68, double sealed
    LED light color
    red,blue,green,yellow,purple,white…(customized)
    Color:
    red,blue,green,yellow…(can be customized)
    Weight:
    1.5T
